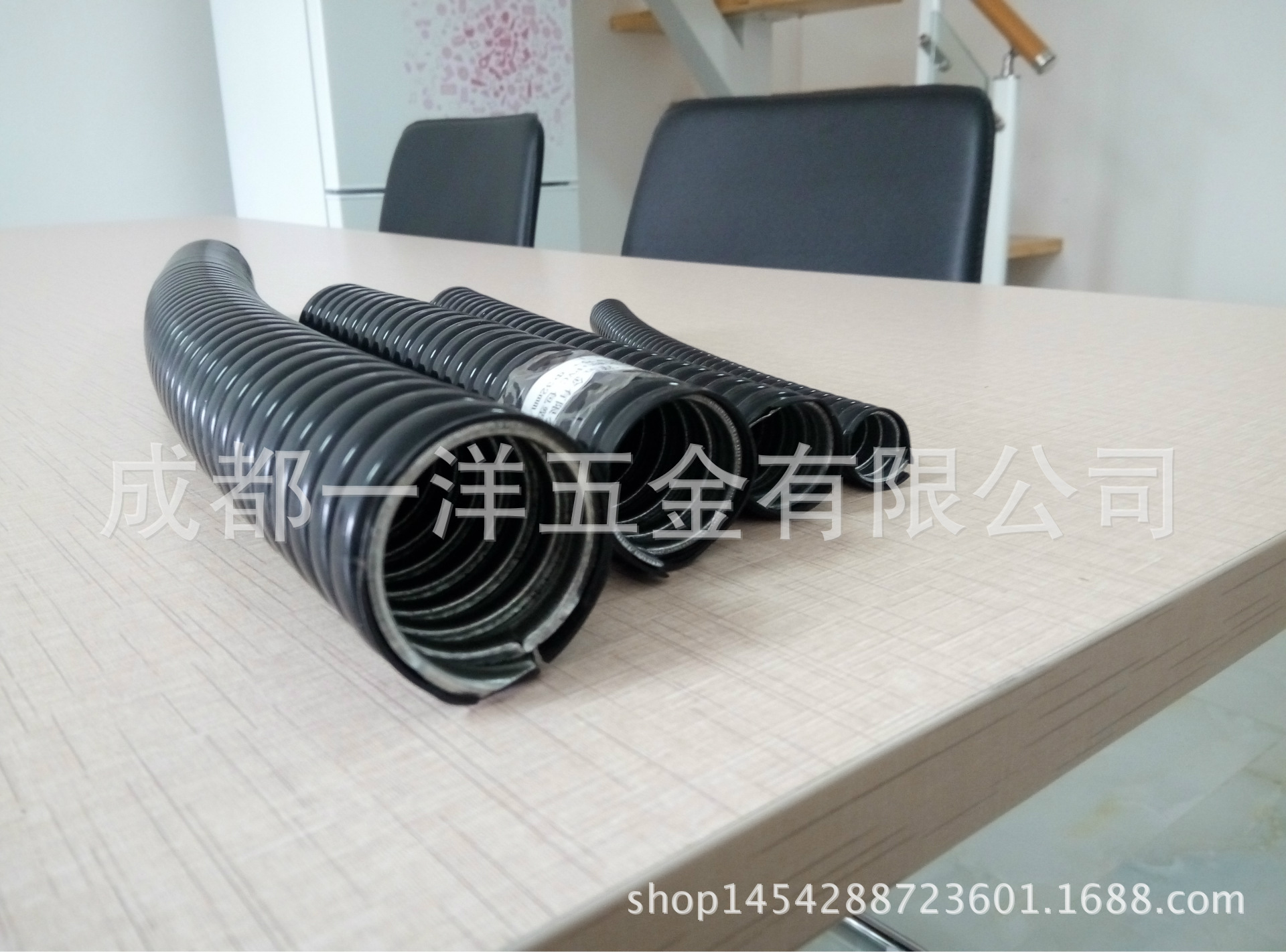

低烟毒镀锌金属软管
|
Low Fire Hazard Galvanized Steel Flexible Conduit
|
|
|
|
材 质:
|
镀锌钢带
|
|
|
|
|
|
PVC 包塑:
|
黑
|
|
|
|
|
|
防护等级:
|
IP65
|
|
|
|
|
|
耐温范围:
|
-10℃ - +90℃
|
|
|
|
|
拉 力:
|
1700N
|
|
|
|
|
|
Materials:
|
Galvanized Steel
|
|
|
|
|
PVC Coated:
|
Black
|
|
|
|
|
|
Protection Rating:
|
IP65
|
|
|
|
|
|
Temperature Range:
|
-10℃ - +90℃
|
|
|
|
|
Tension:
|
1700N
|
|
|
|
|
|
|
|
|
|
|
型号 Part No.
|
规格
|
通径
|
内径(mm)
|
外径(mm)
|
弯曲半径(mm)
|
包装(m/coil)
|
镀锌钢带(S)
|
Inch
|
mm
|
I.D.
|
O.D.
|
Benging Radius
|
Packing
|
LFH-10S
|
3/8"
|
Ф12
|
12.30-12.60
|
16.50-16.80
|
60.0
|
50
|
LFH-11S
|
1/2"
|
Ф16
|
15.70-16.00
|
20.50-20.80
|
85.0
|
50
|
LFH-12S
|
3/4"
|
Ф20
|
19.70-20.00
|
25.30-25.60
|
100.0
|
50
|
LFH-13S
|
1"
|
Ф25
|
25.30-25.80
|
30.70-31.20
|
120.0
|
50
|
LFH-14S
|
1-1/4"
|
Ф32
|
32.30-32.80
|
38.50-39.00
|
150.0
|
25
|
LFH-15S
|
1-1/2"
|
Ф38
|
38.30-38.80
|
45.70-46.20
|
180.0
|
25
|
LFH-16S
|
2"
|
Ф51
|
50.00-50.50
|
58.80-59.30
|
220.0
|
20
|
LFH-17S
|
2-1/2"
|
Ф64
|
62.50-63.20
|
73.50-74.00
|
310.0
|
10
|
LFH-18S
|
3"
|
Ф75
|
73.00-73.70
|
84.50-85.20
|
350.0
|
10
|
LFH-19S
|
4"
|
Ф100
|
97.50-98.50
|
109.50-110.50
|
410.0
|
10
|
|
|
|
|
|
|
|
镀锌铁皮制成,表面低烟毒PVC被覆,
|
|
Galvanized Steel Core, PVC coated.
|
轻质结构,绝佳弯曲性能及低烟毒耐燃特性,
|
|
Liqht weight style, excellent flexibility and
|
使用于任何狭小空间或通风不良,
|
|
low fire hazard low smoke.
|
|
注重生命安全等配管区域。
|
|
|
Use for the place with poor ventilation or the
|
|
|
|
|
environment needs more secure care of any narrow
|
|
|
|
|
space for electrical wiring applications.
|
|
|
|
|
|
|
